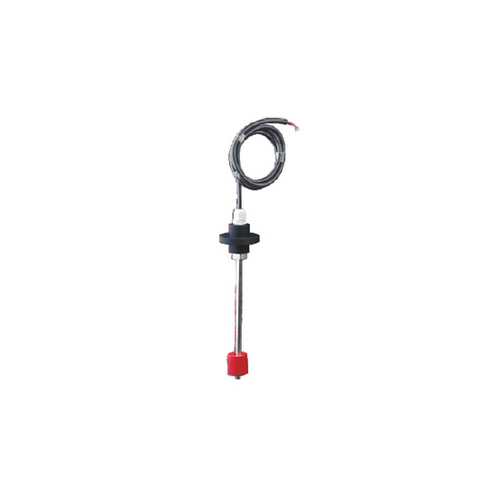

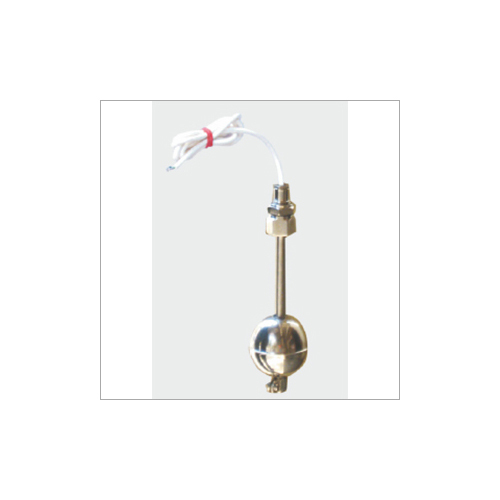

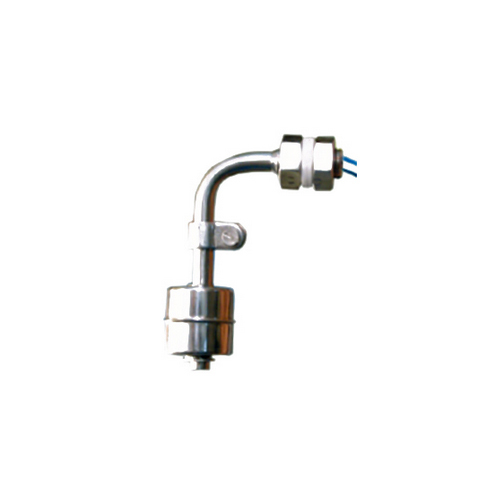

Top Mounted Level Switch

Name: Top Mounted Level Switch
Brand: D. B. INSTRUMENTS & CONTROLS
Price: 1500 INR
Availability: InStock

Price 1500 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Top Mounted Level Switch Specification

Temperature Range
-10C to +80C

Mechanical Life
More than 1,000,000 operations

Automation Grade
Automatic

Number of Module
Single

Protection Level
IP65

Rated Voltage
230V

Finish Type
Polished

Circuit Type
SPST

Response Time
<40ms

Max. Current
1A

Product Type
Top Mounted Level Switch

Material
Stainless Steel

Insulation Resistance
100 M at 500V DC

Contact Resistance
50 m

Max. Voltage
230 Volt (V)

Operating Temperature
-10C to +80C

Size
Sizes Available

Color
Gray

Weight
Approx. 250g

Mounting Type
Top Mounted

Current Rating
1A

No Of Poles
Single Pole

Ingress Protection
IP65

Wiring Type
2-Wire/3-Wire

Connection
Threaded or Flanged

Switch Type
Magnetic Reed Switch

Contact Rating
10VA (Maximum)

Application
Liquid Level Control in Tanks

Float Material
SS304 Stainless Steel

Medium
Water, Oil, Chemicals

Lead Wire Length
1 meter standard (customizable)

Top Mounted Level Switch Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
50 Pieces Per Month

Delivery Time
2-4 Days

About Top Mounted Level Switch

With our genuine hard work, we have become a leading manufacturer, exporter and supplier of Top Mounted Level Switch. The offered switch is manufactured using supreme quality raw materials and advanced technology under the guidance of adroit team of skilled technocrats in compliance with set market quality standards. This switch is used as alarms and pump control on big tank farms. Apart from this, our highly valuable clients can avail this Top Mounted Level Switch in numerous specifications as per their precise needs at most reasonable price from us.

Features:

Application specific design
Excellent durability
Fine finish
Easy to install

Specifications:

Model	VMT-16
Process connection	1/4"BSP(M)
Material of construction	SS 316
Type of switch	SPST
Switch rating	60VA
Total stem length	80mm below hex
Float	41mm dia X 54mm long
Maximum switching voltage	230 VAC / DC
Maximum working
Temperature	125 Degree C
Maximum working pressure	7kg/cm2
Wire length	1 metre long 19/36 SWG PTFE insulated
Wire colour code	Red-common black NC Yelow -NO

Versatile Application in Tank Level Control

This level switch is suitable for a broad range of liquids including water, oil, and chemicals. Its robust SS304 stainless steel construction ensures durability even in demanding industrial environments. Whether installed via threaded or flanged connections, it provides consistent and reliable level control for tanks of varying sizes and specifications.

Dependable Performance and Safety

Equipped with a magnetic reed switch, an IP65 protection rating, and insulation resistance exceeding 100 M at 500V DC, this device is built for safe and accurate monitoring. The polished finish and single-pole configuration enhance both usability and safety by preventing unwanted liquid overflow or dry run conditions.

Easy Installation and Customization

Mounting is straightforward at the top of the tank, with one-meter standard lead wire included and customization available upon request. The automatic operation, fast response time under 40ms, and compatibility with SPST circuits offer a seamless fit into existing automation systems.

FAQs of Top Mounted Level Switch:

Q: How do I install the Top Mounted Level Switch in my tank?

A: Installation is simple: the switch can be mounted via threaded or flanged connection at the tanks top opening. Ensure a secure and leak-proof fit by matching the connection type appropriately to your tank. Wiring is accessible via a standard one-meter lead, which can be customized if required.

Q: What types of liquids can this level switch control?

A: It is designed for use with water, oil, and various chemicals, making it suitable for a wide range of industrial and commercial tank level monitoring applications.

Q: When should I use a magnetic reed switch level switch?

A: Magnetic reed switches are ideal for automatic liquid level control in environments where reliable contact operation, long mechanical life, and protection against splashes and dust are required. Use it when precise and dependable level detection is vital to safety or process efficiency.

Q: Where can I purchase the Top Mounted Level Switch?

A: This model is available through manufacturers and suppliers across India. You can contact trusted sellers or authorized distributors for quotations, technical support, and customization options based on your project needs.

Q: What is the process to customize the lead wire length?

A: Customization is straightforwardwhen ordering, specify your required wire length in addition to the standard one-meter. The manufacturer will prepare the switch to match your installation needs, ensuring seamless integration into your system.

Q: What are the key benefits of using this level switch for tank automation?

A: Major benefits include durable stainless steel construction, resistance to harsh chemicals, quick response times, mechanical longevity, and reliable IP65 protection. These features minimize maintenance and maximize accuracy in liquid level monitoring.
