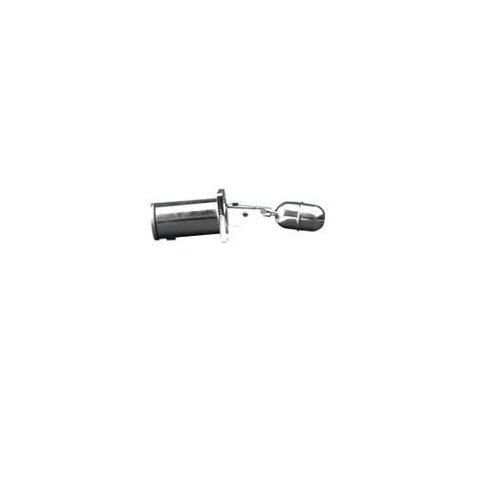

Side Mounted Mini PP Float Type Level Switch - EXT

Name: Side Mounted Mini PP Float Type Level Switch - EXT
Brand: D. B. INSTRUMENTS & CONTROLS
Price: 750 INR
Availability: InStock

Price 750 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Side Mounted Mini PP Float Type Level Switch - EXT Specification

Automation Grade
Manual

Max. Current
0.5A

Finish Type
Smooth

Protection Level
IP65

Circuit Type
Normally Open/Closed

Temperature Range
-10C to 80C

Response Time
<10 ms

Number of Module
Single

Rated Voltage
250V AC

Mechanical Life
100000 Operations

Product Type
Side Mounted Mini PP Float Type Level Switch - EXT

Material
PP

Insulation Resistance
100 M (500VDC)

Contact Resistance
100 m

Max. Voltage
250V AC/DC

Operating Temperature
80 Celsius (oC)

Stoke
10 mm

Size
Standard

Color
Blue

Weight
Approx. 25g

Mounting Type
Side Mounted

Current Rating
0.5A at 250V AC

No Of Poles
Single (SPST)

Side Mounted Mini PP Float Type Level Switch - EXT Trade Information

Minimum Order Quantity
10 Pieces

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

About Side Mounted Mini PP Float Type Level Switch - EXT

Introducing the must-have Side Mounted Mini PP Float Type Level Switch - EXT, a new standard in grandiose liquid level monitoring for tanks, containers, and vessels. Crafted from robust Polypropylene (PP) with gilt-edged insulation resistance (100 M at 500VDC) and a smooth finish, this compact marvel features an SPST, reed switch for reliability. Its horizontal installation, IP65 protection, and ineffable precision ensure accurate sensing up to 80C. Take advantage of this indispensable solution, widely trusted by manufacturers and suppliers across India for ineffable operational excellence.

Superior Features and Application

The Side Mounted Mini PP Float Type Level Switch - EXT is engineered for horizontal installation, making it ideal for tanks, containers, and vessels that require reliable liquid monitoring. With a PP float and body, neoprene gasket, and SPST contact, this switch excels in harsh industrial conditions. Its robust design ensures enhanced chemical compatibility and long-term durability, making it suitable for chemical plants, water treatment, and process industries needing gilt-edged automation and safety.

Supply, Shipping, and Export Markets

We ensure a consistent supply ability of the Side Mounted Mini PP Float Type Level Switch - EXT to meet bulk requirements. Secure shipping and careful freight handling guarantee that each unit is shipped with maximum efficiency and protection. Our main export markets span across major regions, including Asia, Africa, and the Middle East. With prompt delivery times, we prioritize your project schedules and safeguard seamless procurement from trusted manufacturers and suppliers.

Pole And Throw Specification	SPST
Operating Temperature Range	80 deg.
Brand	D.B.Instruments
Material/Body	PP
Mounting Options	Side Mount
Usage/Application	Can be used to sense the level of liquid in a tank.
Media Type	Liquid
Model Name/Number	SMT-PP-EXT
Features	Horizontel Mounting
Operating Pressure	1 max. Kgcm2

FAQs of Side Mounted Mini PP Float Type Level Switch - EXT:

Q: How is the Side Mounted Mini PP Float Type Level Switch - EXT installed?

A: The Side Mounted Mini PP Float Type Level Switch - EXT is designed for horizontal installation on the side walls of tanks, containers, or vessels, ensuring precise liquid level detection in diverse locations.

Q: What types of liquids can this level switch monitor?

A: This level switch is suitable for monitoring a wide range of liquids, including water and chemicals, owing to its Polypropylene (PP) construction that offers excellent chemical resistance.

Q: What are the advantages of using a reed switch SPST design?

A: The reed switch SPST design provides reliable operation with flexibility to select either normally open or normally closed contact forms, ensuring versatility for various automation needs.

Q: Where can this switch be used?

A: It is widely used in industrial settings like chemical plants, water treatment facilities, and storage tanks, wherever reliable liquid level monitoring is required.

Q: What is the shipment process for this product?

A: Once an order is placed, the product is securely packaged and shipped using reliable freight services, reaching customers domestically and internationally within scheduled delivery timelines.

Q: How durable is the Side Mounted Mini PP Float Switch?

A: With a mechanical life of 100,000 operations, IP65 protection, and resistance to temperatures up to 80C, this switch promises lasting durability and performance in demanding conditions.
