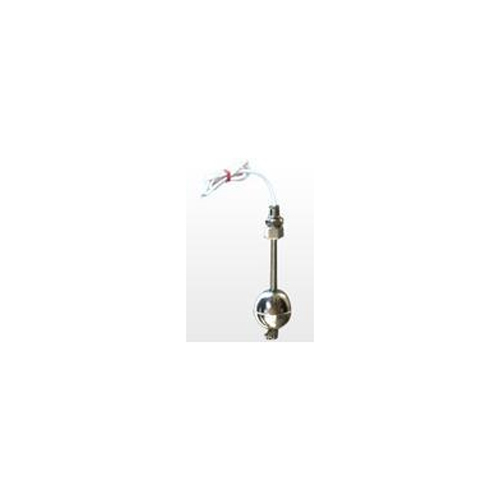

Liquid Level Switch

Name: Liquid Level Switch
Brand: D. B. INSTRUMENTS & CONTROLS
Price: 1550 INR
Availability: InStock

Price 1550 INR/ Piece

Get a Price/Quote

MOQ : 5 Pieces

Liquid Level Switch Specification

Rated Voltage
230V AC

Automation Grade
Automatic

Response Time
10ms

Temperature Range
-10C to +80C

Number of Module
Single

Circuit Type
SPST

Max. Current
0.5A

Finish Type
Polished

Mechanical Life
Over 1,000,000 operations

Protection Level
IP65

Product Type
Liquid Level Switch

Material
Stainless Steel

Insulation Resistance
100M min (at 500V DC)

Contact Resistance
100m max

Max. Voltage
200-230 Volt (V)

Operating Temperature
-10C to +80C

Stoke
10 mm

Size
Sizes Available

Color
Gray

Weight
120g

Mounting Type
Vertical Mount

Current Rating
0.5A

No Of Poles
Single Pole

Liquid Level Switch Trade Information

Minimum Order Quantity
5 Pieces

Supply Ability
50 Pieces Per Month

Delivery Time
2-4 Days

About Liquid Level Switch

To satisfy different needs of customers, we are committed to manufacture, export and supply a wide range of Liquid Level Switch. The provided switch is manufactured at our state-of-the-art production unit using the best quality raw materials and latest techniques under the stern supervision of our highly skilled experts. This switch is used in various industries like pharmaceutical, marine, hydraulic power pack, beverages and chemical for indicating the level of water. Further, this Liquid Level Switch can be availed by our prominent clients at pocket friendly price.

Features:

Elevated durability
Fine finish
Precise dimensions
Corrosion resistance

Technical Specification:

ModelVMT- 16 - SSCG
Process Connection1/4"BSP(M)
Mounting ConstructionSS 316
Type of SwitchSPST / SPDT
Switch RatingSPST / SPDT
Total Stem Length150mm & 250mm
Float53mm dia (at collar) Spherical Float SS316
Maximum Switching Voltage300 VAC / DC
Maximum Working Temperature125 C (Higher Temperature of 175 C optional )
Maximum Working Pressure10 kg/cm2
Cable Entry3 Core PTFE with overall silicon insulation
Cable GlandSS 316

Precision Engineered for Liquid Level Monitoring

Designed for reliability and longevity, this liquid level switch ensures precise fluid detection in both water and oil tanks. The use of SS316 stainless steel prevents rust and corrosion, making it suitable for diverse industrial environments. Its compact design enables easy installation in restricted spaces, providing flexible mounting options to suit a variety of tank configurations.

Adaptable and Safe for Industrial Demands

With PVC-insulated lead wires and an IP65 protection rating, the switch operates safely in demanding conditions. High insulation resistance and a low response time of 10ms guarantee stable and accurate operation. Rated for standard atmospheric pressure and a wide voltage range, its designed to meet the practical needs of manufacturers and suppliers across India.

FAQs of Liquid Level Switch:

Q: How do I install the Liquid Level Switch in my water or oil tank?

A: This switch is designed for easy top or side mounting, using a vertical installation method. Simply secure the unit onto the tank using the provided fixture, connect the PVC-insulated cable as per wiring instructions, and ensure the float moves freely within the tank.

Q: What applications is this switch suitable for?

A: It is ideal for water and oil tank level monitoring in industrial environments. Its corrosion-resistant SS316 construction and polished finish make it well-suited for manufacturing, processing, and supply industries where reliable fluid detection is essential.

Q: Where is the switch typically used and why?

A: This switch is widely used in factories, processing plants, and by equipment manufacturersanywhere accurate and automated liquid level sensing is required. Its robust stainless steel body ensures performance in both indoor and outdoor tanks.

Q: What are the benefits of using a magnetic reed switch design?

A: Magnetic reed switches offer high precision, reliability, and long mechanical life (over 1 million operations). They respond quickly (10ms) to level changes and operate efficiently in environments with liquids like water and oil, thanks to the non-contact sensing principle.

Q: When should I consider replacing or maintaining the switch?

A: Regular inspection is recommended, especially in harsh environments. The switch boasts a mechanical life exceeding 1 million operations, but replacement might be needed if theres noticeable wear, corrosion, or inconsistent switching performance.

Q: What process is followed by the switch to detect liquid level changes?

A: As the liquid level moves, the stainless steel float rises or falls, activating the magnetic reed switch inside the housing. This opens or closes an electrical circuit, allowing for automation and signaling of tank levels.

Q: How does the switch ensure safety and reliability?

A: The product maintains high insulation resistance (100M at 500V DC) and low contact resistance (100m max), minimizes the risk of electrical faults, and meets IP65 protection for use in dusty or wet environments, guaranteeing operator safety and consistent functioning.
